TG-8000 Ultrasonic Depth Tester For Induction Hardened Layer

  • 1
  • 2

Brand Name : HUATEC

Model Number : TG-8000

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD48300/set - USD54600/set

Payment Terms : T/T, Western Union,Paypal, L/C

Delivery Time : 20-30 working days after receipt of your payment

Packaging Details : Outer carton packaging

Measurement range : 0.7 ~ 15mm

Measurement resolution : 0.1mm

Sensibility : 80 dB or more (5 MHz narrow band)

Adjustable gain : Max 120dB Min 0.1dB pitch

Center frequency of receiving amplification : 1-20Mhz

Vertical linearity : Within ±2.8%

Horizontal linearity : Within ±0.6%

Contact Now

TG-8000 Ultrasonic Depth Tester for Induction Hardened Layer

Background:

Surface hardening treatment can improve the wear resistance and fatigue strength of components subjected to dynamic stress. These characteristics are mainly determined by the surface hardness, hardened depth, and depth profile of residual stress. The depth of the hardened layer is an important quality indicator in the surface hardening treatment process. Currently, the quality of the hardening process can only be ensured through random testing methods. This method not only damages components, wastes time, but also has a high cost.

Hardened layer depth detection performance

Object to be measured Depth of the induction hardened layer
Measurement range 0.7 ~ 15mm
Measurement resolution 0.1mm
Measurement repeatability ±0.1mm(per one location)
Sensibility 80 dB or more (5 MHz narrow band)
Adjustable gain Max 120dB Min 0.1dB pitch
Center frequency of receiving amplification 1-20Mhz
Vertical linearity Within ±2.8%
Horizontal linearity Within ±0.6%
AC charger AC 65W fast charging input 100 ~ 240V±10% 50/60Hz±3Hz
Battery Lithium-ion battery
Charging time 1.5h
Operating time About 12h(Varies depending on user usage conditions)
Ambient temperature 0~50℃(during operation)-20~60℃( during storage)
Display and screen size 5.0 inch LCD HD screen
External dimensions(mm),weight(g) 183mm(W)×113mm(H)×45mm(D) 780g
External interface SD memory card
Type-c data transmission port

Solution:

Our company uses a fast, non-destructive ultrasonic method to measure the depth of hardened layers. This method can reduce the inspection workload and cost, and ensure that the product is always of high quality by adjusting the production process in time. The instrument can optimize the manufacturing parameters, shorten the idle time of the machine after replacing the inductive sensor, realize the fast manufacturing control function and good quality management.

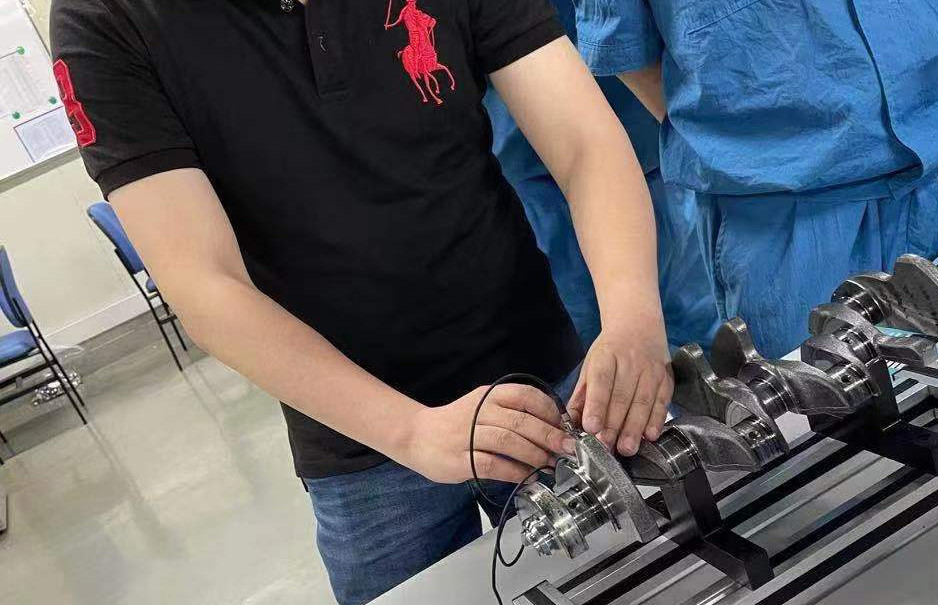

Our equipment:

The device utilizes the following principle: the hardened layer has almost no resistance to ultrasonic waves, while materials that have not undergone hardening treatment will scatter a large amount of ultrasonic waves. The detection system records the backscatter signal and processes it with our electronic measuring elements. Through comprehensive automatic data evaluation, the final hardened depth of the material can be obtained.

Features

● Measurement equipment can be integrated into the production process.

● The measurement accuracy is very high: the error in determining the surface depth value is about ± 0.1mm (metallographic method)

● Quickly obtain measurement results: each measurement only takes a few seconds.

● Large numbers of parts can be evaluated very quickly.

● By using different wedges, workpieces of different sizes can be measured.

● The device can move freely (total weight: 780g).

● Parameters can be easily adjusted according to customer requirements.

Technical parameters

●Ultrasonic pulse transducer

●Ultrasonic receiving frequency:1—20 MHz.

●Two receiving and sending channels.

●Signal envelope processing.

●Acoustic coupling is achieved through special wedges.

Standard configuration

Serial number Name Quantity
1 Host 1
2 Probe 1
3 Probe line 1
4 Wedge 1
5 Fast charging 1
6 Split bottle coupling agent and calibration sample Each 1
7 Power cable 1
8 Manual 1
9 Certificate 1
10 Warranty card 1

Optional configuration

Wedge blocks that can be customized to fit different workpiece shapes

TG-8000 Ultrasonic Depth Tester For Induction Hardened LayerTG-8000 Ultrasonic Depth Tester For Induction Hardened Layer
